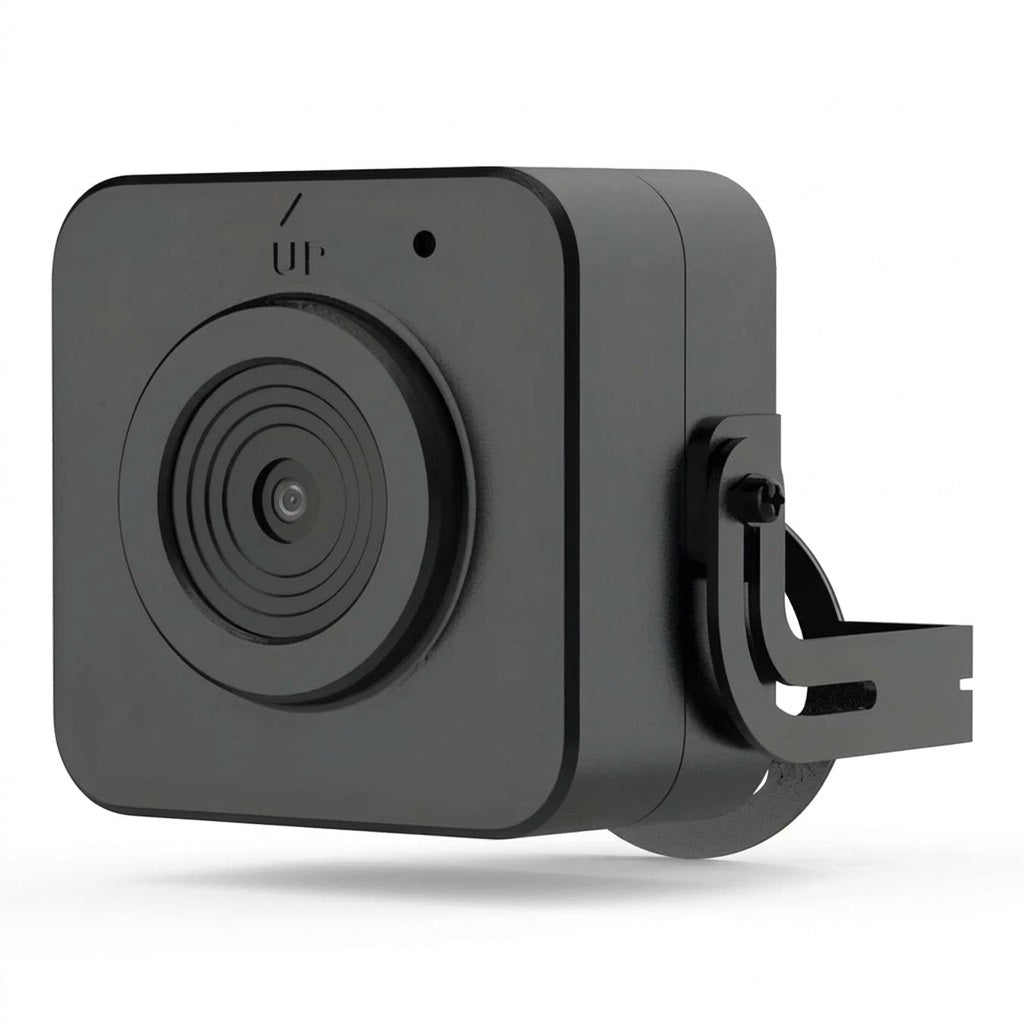

Hikvision 4MP Covert Network Camera 2.8

The Hikvision DS-2CD2D45G2/S-U 4MP Covert Network Camera is designed for discreet, professional indoor surveillance where compact size and unobtrusive monitoring are important. Equipped with a 4MP Progressive Scan CMOS sensor, it captures detailed video at up to 2688 × 1520 resolution, helping provide clear surveillance footage for business and commercial environments.

The fixed 2.8mm F2.0 lens offers a wide 90.5° horizontal field of view, making it suitable for monitoring entrances, counters, offices, rooms and other indoor areas. With 120dB Wide Dynamic Range (WDR), the camera helps manage challenging lighting conditions with bright and dark areas in the same scene.

Featuring Hikvision AcuSense intelligent analytics, Face Capture support and a built-in microphone, this camera combines video monitoring, intelligent surveillance features and audio capture in a compact covert camera design. H.265+ compression helps reduce bandwidth and storage requirements, making it a practical option for professional IP surveillance systems.

Key Features

4MP High-Resolution Imaging: Captures video at up to 2688 × 1520 resolution.

Compact Covert Design: Suitable for discreet indoor surveillance installations.

2.8mm Fixed Lens: Provides a wide 90.5° horizontal field of view.

AcuSense Technology: Supports intelligent video analytics.

Face Capture: Supports face capture functionality.

120dB WDR: Helps balance images in scenes with contrasting lighting.

Built-In Microphone: Captures mono audio alongside video.

H.265+ Video Compression: Helps reduce bandwidth and storage requirements.

Triple-Stream Architecture: Supports separate video streams for different monitoring and recording requirements.

Flexible Frame Rates: Up to 25fps at full resolution in 50Hz environments and up to 30fps in 60Hz environments.

Environmental Noise Filtering: Supports audio noise filtering.

Integrated Memory: Includes 2GB eMMC, as specified.

Professional IP Surveillance: Designed for applications requiring compact, discreet network camera hardware.

Technical Specifications
Camera and Image

Specification

Details

Brand

Hikvision

Model

DS-2CD2D45G2/S-U(2.8mm)

Product Type

4MP Covert Network Camera

Image Sensor

1/3-inch Progressive Scan CMOS

Maximum Resolution

2688 × 1520

Maximum Frame Rate

25fps at 50Hz / 30fps at 60Hz

Minimum Illumination

Colour: 0.008 Lux at F2.0, AGC On

Shutter Speed

1s to 1/100,000s

Wide Dynamic Range

120dB WDR

Video Streams

3

Lens Specifications

Specification

Details

Lens Type

Fixed focal length

Focal Length

2.8mm

Lens Mount

M12

Aperture

F2.0

Horizontal Field of View

90.5°

Vertical Field of View

46.2°

Diagonal Field of View

110°

Depth of Field

0.7m to 2.1m

DORI Distances

Function

Distance

Detection

78.4m

Observation

31.1m

Recognition

15.7m

Identification

7.8m

DORI distances are reference values based on the supplied specifications. Actual results depend on the scene, lighting, installation and viewing conditions.

Video and Compression

Specification

Details

Main Stream Compression

H.265+, H.265, H.264+, H.264

Sub-Stream Compression

H.265, H.264, MJPEG

Third Stream Compression

H.265, H.264

Bit Rate Control

CBR / VBR

Scalable Video Coding

Supported with H.264 / H.265

Region of Interest (ROI)

4 fixed regions per stream

Intelligent Features and Audio

Specification

Details

Intelligent Technology

AcuSense

Face Capture

Supported

Built-In Microphone

Yes

Audio Type

Mono

Audio Compression

G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Audio Sampling Rates

8kHz, 16kHz, 32kHz, 48kHz

Environmental Noise Filtering

Supported

Memory

Specification

Details

HEOP Memory

60MB

HEOP Smart RAM

370MB

Integrated eMMC

2GB

Ideal Applications

Discreet indoor video surveillance

Offices and commercial premises

Reception areas and counters

Entrances and indoor access points

Retail environments

Professional IP camera installations requiring compact camera hardware

What`s in the Box

- 1 × Hikvision DS-2CD2D45G2/S-U(2.8mm) 4MP Covert Network Camera
