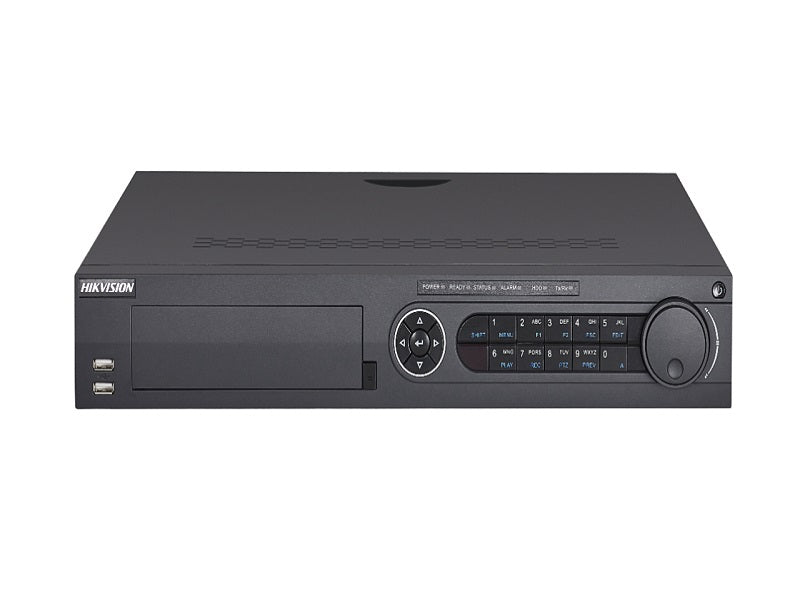

Hikvision DS-7332HQHI-K4 32-channel DVR front panel with jog dial and numeric keypad

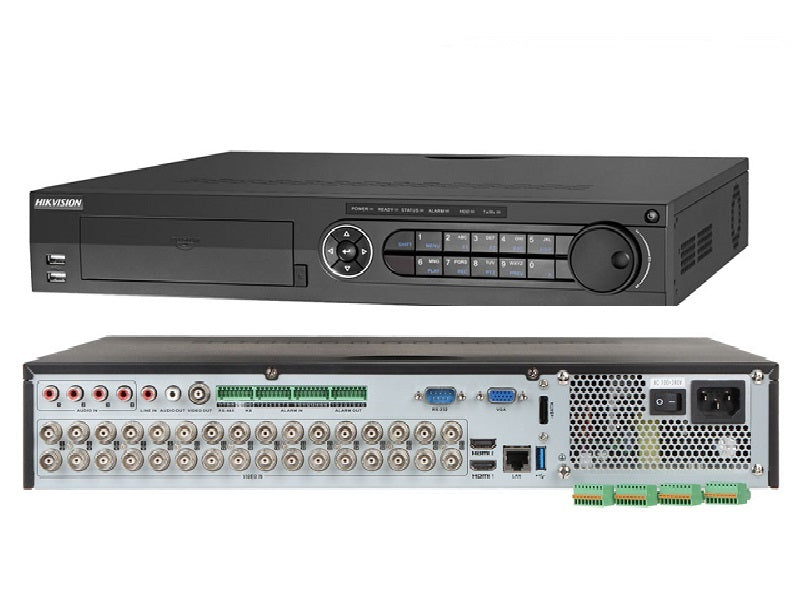

Hikvision DS-7332HQHI-K4 DVR front and rear panels showing 32 BNC inputs and power switch

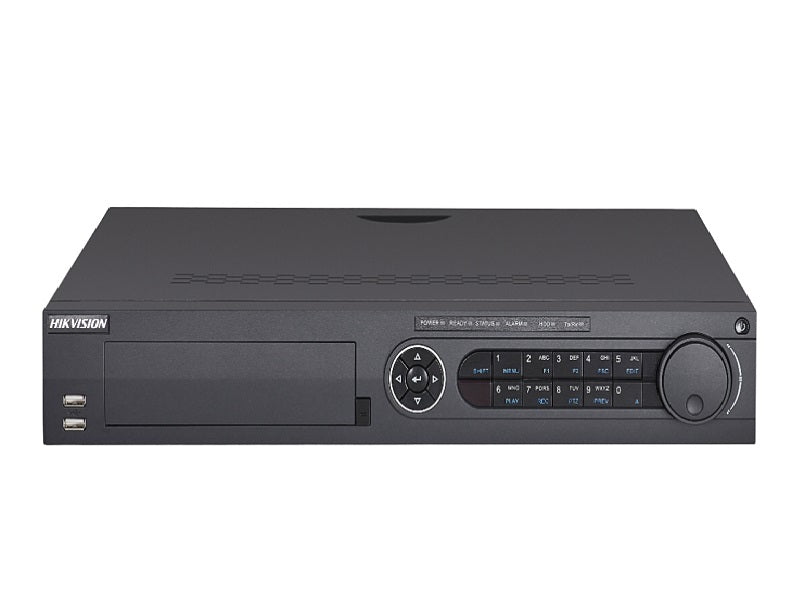

Hikvision DS-7332HQHI-K4 DVR front-angled view highlighting keypad and dual USB ports

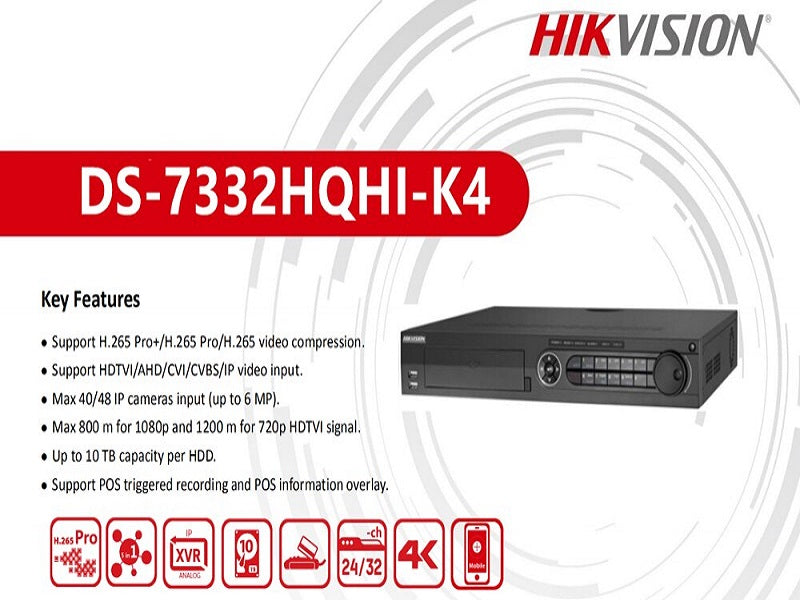

Hikvision DS-7332HQHI-K4 DVR feature diagram listing H.265 Pro+ and up to 10TB HDD support

Hikvision DS-7332HQHI-K4 32-Channel 1080p Turbo HD DVR - 4K HDMI, Quad SATA

4MP STREAM 4 X SATA

HIKVISION
R 14,563
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 2,427.16 over 2–6 instalments
Price: R 14,563

Description

Supports POS triggered recording and POS information overlay. 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1/2/3/4.,.

Key features

  • Encoding ability up to 1080p @ 15 fps
  • Up to 48 network cameras can be connected
  • 32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Pal/ntsc
  • 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Synchronous Playback
  • Recording
  • Encoding Resolution
  • When 1080p Lite mode not enabled: ,4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: ,4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF,
  • Frame Rate
  • Main stream: ,When 1080p Lite mode not enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps,For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps,For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
  • Dual Stream
  • Support
  • Stream Type
  • 16-ch (up to 48-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Remote Connections
  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Sata
  • Up to 10 TB capacity for each disk
  • Alarm In/Out
  • Front panel: 2 × USB 2.0;,Rear panel: 1 × USB 3.0
  • Esata
  • Consumption (Without HDD)
  • Working Temperature
  • 10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity
  • 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
  • Weights (Without HDD)

Specifications

  • 4MP stream 4 X sata
  • 32-ch 1080p 1.5U H.265 DVR
  • 24 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • 1080p25, 1080p30, 720p25, 720p30
  • HDMI1/VGA Output
  • HDMI2 Output
  • 4-ch, RCA (2.0 Vp-p, 1 K'd9)
  • 1-ch, RCA (Linear, 1 K'd9)
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9) (independent)
  • 16-ch
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • 32 Kbps to 6 Mbps
  • G.711u
  • 64 Kbps
  • 128
  • 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • 4 SATA interfaces
  • Capacity
  • 16/4
  • RS-232, RS-485 (full-duplex), Keyboard
  • 100 to 240 VAC
  • ≤ 45 W
  • 10% to 90%
  • Dimensions (W × D × H)
  • ≤ 7 kg (15.4 lb)

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Hikvision / Hikvision DVRs / New Arrivals / Security & Surveillance / Specials
Brand Hikvision
Channels 32-ch 1080p 1.5U H.265 DVR
Storage 4 SATA, up to 10 TB per disk
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Up to 1080p @ 15 fps
Video Input HDTVI/AHD/CVI/CVBS/IP
IP Camera Inputs Up to 48-ch, up to 6 MP
HDMI Output Up to 4K (3840x2160)/30Hz
Video Bitrate 32 Kbps to 6 Mbps
Alarm In/Out 16/4
Power Supply 100 to 240 VAC
Consumption ≤ 45 W
Dimensions 440 x 390 x 70 mm
Weight ≤ 7 kg
SKU DS-7332HQHI-K4
Barcode 6954273652791
