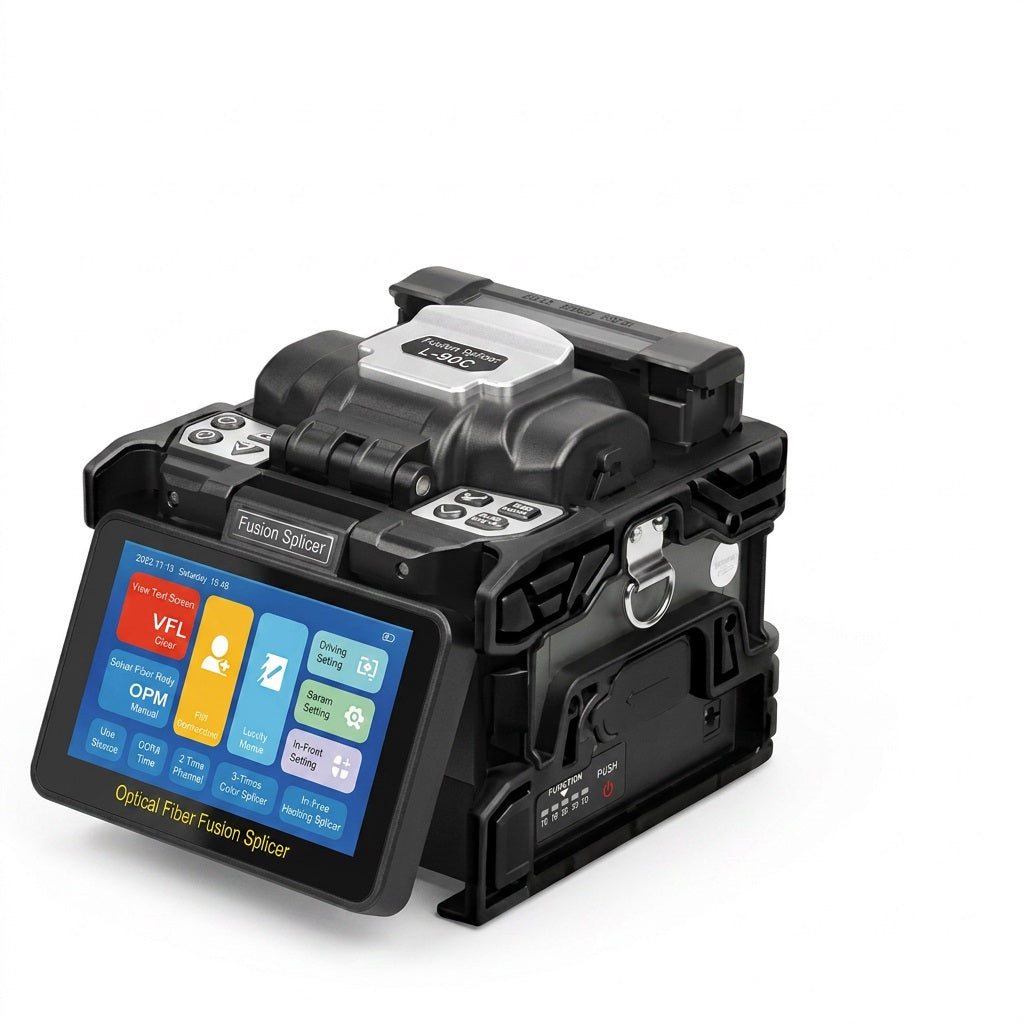

L-90C Automatic Fiber Optic Fusion Splicer – Fibre Cable Splicing Machine for FTTH & Network Installation

Upgrade your fibre optic installation and maintenance equipment with the L-90C Automatic Fiber Optic Fusion Splicer, a professional fibre cable splicing machine designed for fast, accurate and reliable optical fibre fusion splicing. With automatic core/cladding alignment, six-motor focusing, low splice loss, a 5-inch HD touchscreen, built-in Optical Power Meter (OPM) and Visual Fault Locator (VFL), the L-90C provides an efficient all-in-one solution for fibre technicians and network installers.

Ideal for FTTH installations, fibre-to-the-home projects, telecommunications, LAN/WAN networks, data centres, security systems, backbone networks and fibre optic maintenance, this fusion splicer combines precision performance with a portable field-ready design.

Key Features
Fully Automatic Fibre Splicing: Automatic operation provides fast and consistent fibre alignment and splicing.
Core & Cladding Alignment: Supports accurate fibre positioning for reliable splice results.
Six-Motor Automatic Focusing: Advanced six-motor system enables precise focusing and alignment.
Fast 8-Second Splicing: Typical SMF welding time of approximately 8 seconds.
18-Second Heating: Typical heat-shrinking time of approximately 18 seconds.
Low Splice Loss: Approximately 0.02dB for SMF, 0.01dB for MMF and 0.04dB for DSF/NZDS.
Built-in Optical Power Meter: Integrated OPM with a measurement range of -70 to +10dBm and wavelength range of 850–1650nm.
Built-in Visual Fault Locator: Red-light VFL with a range of ≥15km.
5-Inch HD Touchscreen: Capacitive touchscreen with up to 300× magnification for clear fibre viewing.
Multiple Operating Modes: Fully automatic, semi-automatic and manual welding modes.
Long Battery Runtime: 6700mAh rechargeable lithium-ion battery supports approximately 200 welding/heating operations.
Wide Fibre Compatibility: Supports SM G.652/G.657, MM G.651, DS G.653 and NZDS G.655 fibre.
Portable Field Design: Compact splicer with carrying straps and a rugged toolbox for transportation and onsite work.
Integrated Work Platform: The carrying case features a detachable stool capable of supporting up to 150kg.
Large Internal Storage: Stores up to 1,000 welding records.
Long Electrode Life: Electrodes rated for approximately 3,000 splices.
USB Connectivity: USB interface for data export, upgrades and power output.
Technical Specifications
Specification Details
Model L-90C
Suitable Fibre SM G.652/G.657, MM G.651, DS G.653, NZDS G.655 & Custom
Alignment Core & Cladding Alignment
Focusing System 6-Motor Automatic Focusing
Splicing Modes Fully Automatic / Semi-Automatic / Manual
Typical Splicing Time 8 Seconds (SMF)
Typical Heating Time 18 Seconds
Splice Loss 0.02dB SMF / 0.01dB MMF / 0.04dB DSF/NZDS
Display 5.0" HD Capacitive Touchscreen
Magnification Up to 300×
Built-in OPM -70 to +10dBm
OPM Wavelength Range 850–1650nm
OPM Wavelengths 10 Bands
Built-in VFL ≥15km
Battery 6700mAh Lithium-Ion
Power Supply 11.8V Internal Battery
AC Adapter AC 100–240V, DC 13.5V / 4.81A
Electrode Life Approx. 3,000 Splices
Welding Records Up to 1,000 Records
Interface GUI / USB
Operating Temperature -15°C to +50°C
Operating Humidity ≤90% RH, Non-Condensing
Splicer Dimensions 151 × 163 × 145mm
Weight 2,069g with battery / 1,672g without battery
Complete Package Includes
L-90C Automatic Fibre Optic Fusion Splicer
Built-in Rechargeable Battery
Heavy-Duty Portable Toolbox
High-Precision Fibre Cleaver
3-Port Fibre Stripping Forceps
Leather Wire / Drop Cable Stripper
Spare Electrodes – 1 Pair
Anti-Falling Bag for Cleaver
Hand Strap / Shoulder Strap
Power Cord
AC Power Adapter
Fibre Cleaver Operation Area
Empty Alcohol Bottle
Cleaning Brush & Air Blower
Airlaid Lint-Free Cleaning Paper
Calibrating Optical Fibre
Fibre Optic Cooling Rack
Heat Shrink Tubes – 100 PCS
Heat Shrink Tubing for Drop/Leather Wires – 50 PCS
Protection Boxes – 10 PCS
Instruction Manual
Warranty Card
Certificate
Product Checklist
Portable Toolbox & Field Work Design

The L-90C comes with a heavy-duty portable toolbox designed for professional fibre technicians working onsite. The toolbox provides convenient storage and transportation for the fusion splicer and accessories, while the detachable stool lid supports up to 150kg, allowing it to double as a practical field work seat.

The integrated cleaver work area also allows technicians to perform fibre preparation and cleaving without having to remove the splicer from the case.

Toolbox & Shipping Specifications
Toolbox Size: 30 × 22 × 34cm
Toolbox Weight with Contents: Approx. 7.14kg
Outer Shipping Box: 33.5 × 23.8 × 32.5cm
Total Shipping Weight: Approx. 7.74kg
Stool Capacity: Up to 150kg
Ideal Applications

The L-90C Fiber Optic Fusion Splicer is suitable for:

FTTH Fibre-to-the-Home Installation
Fibre Optic Cable Installation
Telecommunications Networks
LAN & WAN Fibre Networks
Data Centre Fibre Installation
ISP Network Deployment
Fibre Backbone Installation
CCTV & Security Network Infrastructure
Fibre Optic Repairs & Maintenance
Long-Distance Fibre Links
Network Contractor & Technician Applications
Fibre Testing and Troubleshooting
Why Choose the L-90C?

The L-90C Automatic Fiber Optic Fusion Splicer provides technicians with a complete field-ready fibre splicing solution. Its combination of automatic alignment, fast 8-second splicing, low splice loss, built-in OPM and VFL, rechargeable battery and comprehensive accessory kit makes it suitable for both installation and maintenance work.

With the included professional cleaver, stripping tools, heat-shrink tubes, cleaning accessories, spare electrodes and heavy-duty carrying case, the L-90C is supplied as a comprehensive fibre optic splicing kit ready for professional field applications.
