COMPTYCO MC70-15MW + AUA-7S Fibre Optic Tool Kit - Cleaver, VFL & FTTH Set

MC70-15MW + AUA-7S Fiber Optic Tool Kit – Fibre Cutting, Testing & FTTH Installation Set

The MC70-15MW + AUA-7S Fiber Optic Tool Kit is a comprehensive professional fibre optic installation and maintenance set designed for FTTH installation, fibre cable testing, splicing preparation, cable stripping and network troubleshooting. Combining an advanced 4-in-1 optical tester, 15mW Visual Fault Locator, precision fibre cleaver, fibre strippers and aramid scissors, this kit provides essential tools for fibre technicians in one convenient portable solution.

The kit is ideal for telecommunications engineers, ISP technicians, FTTH installers, network contractors and fibre optic maintenance professionals working in the field.

Key Features
4-in-1 AUA-MC70 Optical Power Meter & Tester

The included AUA-MC70 combines multiple useful functions into one compact rechargeable device:

Optical Power Meter (OPM): Measures optical signal power from -70 to +10dBm.
15mW Visual Fault Locator: Red-light VFL helps identify fibre breaks, bends and continuity problems.
RJ45 Network Cable Tester: Provides convenient testing of network cable connections.
LED Flashlight: Built-in LED provides illumination when working in dark areas or network cabinets.
10 Test Wavelengths: Supports multiple standard fibre testing wavelengths, including 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
Rechargeable: USB charging provides convenient power for field work.
Automatic Standby: Automatically shuts down after approximately 10 minutes of inactivity to help conserve battery power.
Wavelength Memory: Stores frequently used wavelength settings for convenient testing.
AUA-7S Precision Fiber Optic Cleaver

The AUA-7S Fiber Optic Cleaver is designed for accurate fibre preparation before fusion splicing or cold connector termination.

Durable metal knife holder
Automatic springback mechanism
3-in-1 universal fibre fixture
Suitable for different fibre and cable specifications
Designed for clean and consistent fibre cleaving
Suitable for fusion splicing preparation and cold connection termination
Professional Fibre Stripping & Cutting Tools

The kit includes specialised tools for preparing different fibre cable types:

VCFS-33 Three-Port Fibre Stripper

Strips 2–3mm outer jackets
Removes 900`ecm–250`ecm buffer layers
Removes 250`ecm–125`ecm fibre coating
Precision-machined stripping holes help minimise damage to the fibre.

VCFS-J1 FTTH Drop Cable Stripper

Designed for 1-core and 2-core FTTH flat drop cables
Suitable for indoor and outdoor flat/drop cable preparation
Helps remove the cable jacket while protecting the internal fibre.

Aramid Fibre Scissors

Made from CR13 stainless steel
Serrated cutting blades provide effective cutting of Kevlar/aramid strength members
Ergonomic design for practical field use.
Technical Specifications
Specification Details
Toolkit Model MC70-15MW + AUA-7S
Optical Tester AUA-MC70 4-in-1 Tester
Optical Power Meter Range -70 to +10dBm
Visual Fault Locator 15mW
Supported Wavelengths 10 Test Wavelengths
Common Test Wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625nm, etc.
Additional Tester Function RJ45 Network Cable Tester
Additional Light Built-in LED Flashlight
Fiber Cleaver AUA-7S
Cleaver Design Metal Knife Holder with Automatic Springback
Cleaver Fixture 3-in-1 Universal Fixture
Fibre Stripper VCFS-33 3-Port Stripper
FTTH Stripper VCFS-J1 Drop Cable / Leather Wire Stripper
Aramid Scissors CR13 Stainless Steel
Tester Power USB Rechargeable
Applications FTTH Installation, Fibre Testing, Fibre Maintenance, Cold Splicing & Fusion Splicing Preparation

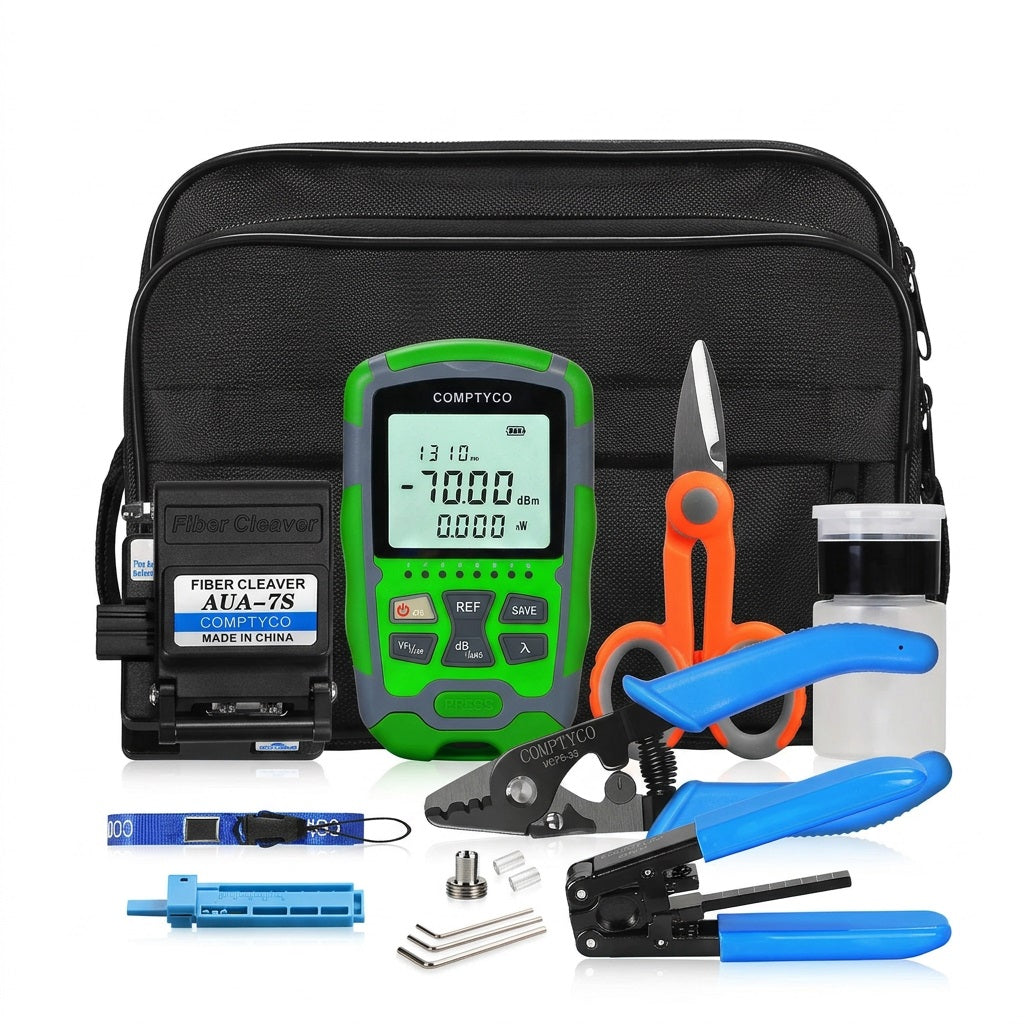

Complete Package Includes
1 × AUA-MC70 4-in-1 Optical Power Meter & 15mW VFL
1 × AUA-7S Fibre Optic Cleaver
1 × VCFS-33 Three-Port Fibre Optic Stripper
1 × VCFS-J1 FTTH Leather Wire / Drop Cable Stripper
1 × Stainless Steel Aramid Fibre Scissors
1 × Cleaver Anti-Falling Soft Protective Bag
1 × Fixed-Length Cable Fixator / Guide Rail
1 × USB Charging Cable
1 × Alcohol Dispenser Bottle
1 × Spare VFL Red-Light Pen Head
2 × Spare Ceramic Cores
Knife Adjustment Hex Wrenches
Dust-Free Cleaning Wipes
1 × Safety Hanging Lanyard
1 × Heavy-Duty Portable Toolkit Bag
Ideal Applications

The MC70-15MW + AUA-7S Fiber Optic Tool Kit is suitable for:

FTTH Fibre-to-the-Home Installation
Fibre Optic Cable Testing
Fibre Continuity Testing
Fibre Fault Detection
Optical Power Testing
Fibre Fusion Splicing Preparation
Cold Mechanical Splicing
Fibre Cable Stripping
FTTH Drop Cable Preparation
Fibre Optic Repairs & Maintenance
Telecommunications Networks
ISP Fibre Installations
LAN/WAN Network Installation
Network Cable Testing
Professional Fibre Technician Field Work
All-in-One Fibre Installation Solution

The MC70-15MW + AUA-7S Fibre Optic Tool Kit brings together essential testing, fault detection, cleaving, stripping and cable preparation equipment in one portable kit. The combination of the AUA-MC70 optical power meter and 15mW VFL, AUA-7S precision cleaver, VCFS-33 stripper, VCFS-J1 FTTH stripper and aramid scissors makes it a practical choice for professional fibre installation and maintenance.

The heavy-duty carrying bag keeps the equipment together and makes transportation between installation sites more convenient.
