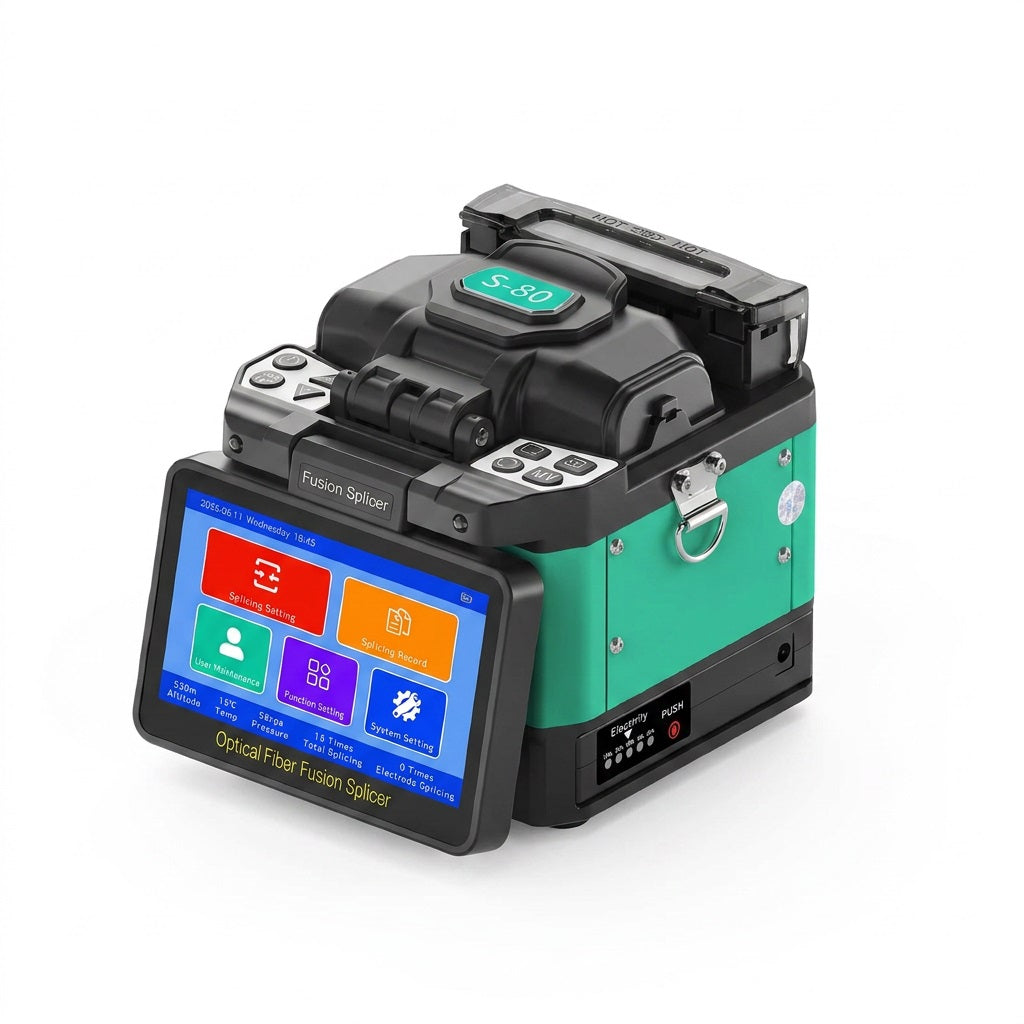

S-80 Automatic Fibre Optic Fusion Splicer – FTTH Fibre Optic Cable Splicing Machine

The S-80 Fibre Optic Fusion Splicer is a professional automatic fibre optic cable splicing machine designed for efficient and reliable fibre optic installation, repair and maintenance. It is suitable for FTTH, FTTx, telecommunications, data networks, CATV and other fibre optic applications.

Featuring six-motor automatic focusing, the S-80 supports multiple fibre types, including Single Mode (SM), Multi Mode (MM), DSF and NZDS fibre. Its automatic, semi-automatic and manual welding modes provide flexibility for different installation requirements.

The machine features a 5-inch high-definition capacitive touchscreen with an intuitive GUI interface and supports up to 1,000 welding records. With a built-in 6700mAh lithium battery, it can perform approximately 200 typical welding and heating operations, making it suitable for field installations where portability is important.

Key Features
Model: S-80
Product Type: Fibre Optic Fusion Splicer
Splicing Method: Automatic / Semi-Automatic / Manual
Focusing: Six-Motor Automatic Focusing
Alignment: Fibre Core / Cladding
Display: 5.0" HD Capacitive Touchscreen
Magnification: 300× X/Y Axis
Typical Splicing Time: 8 seconds for SMF
Typical Heating Time: 18 seconds
Splicing Records: Up to 1,000 sets
Battery: 6700mAh Lithium Battery
Typical Battery Capacity: Approximately 200 splice and heating operations
Electrode Lifespan: Approximately 3,000 splices
Lighting: LED
Heat Shrink Sleeve: 20–60mm
USB: Data export, system upgrades and power output
Fusion Splicer Weight: 1.8kg including battery
Machine Dimensions: 137 × 160 × 145mm
Fibre Compatibility

The S-80 supports a wide range of optical fibre types:

SM: G.652 / G.657
MM: G.651
DS: G.653
NZDS: G.655
Customising fibre types supported
Reliable Fibre Splicing Performance

The S-80 is designed to provide precise fibre alignment and low splice loss, with typical specified values of 0.02dB for SMF, 0.01dB for MMF and 0.04dB for DSF/NZDS, measured using the ITU-T shear method.

The built-in tensile testing function supports 1.96N–2.1N, helping provide additional verification after splicing.

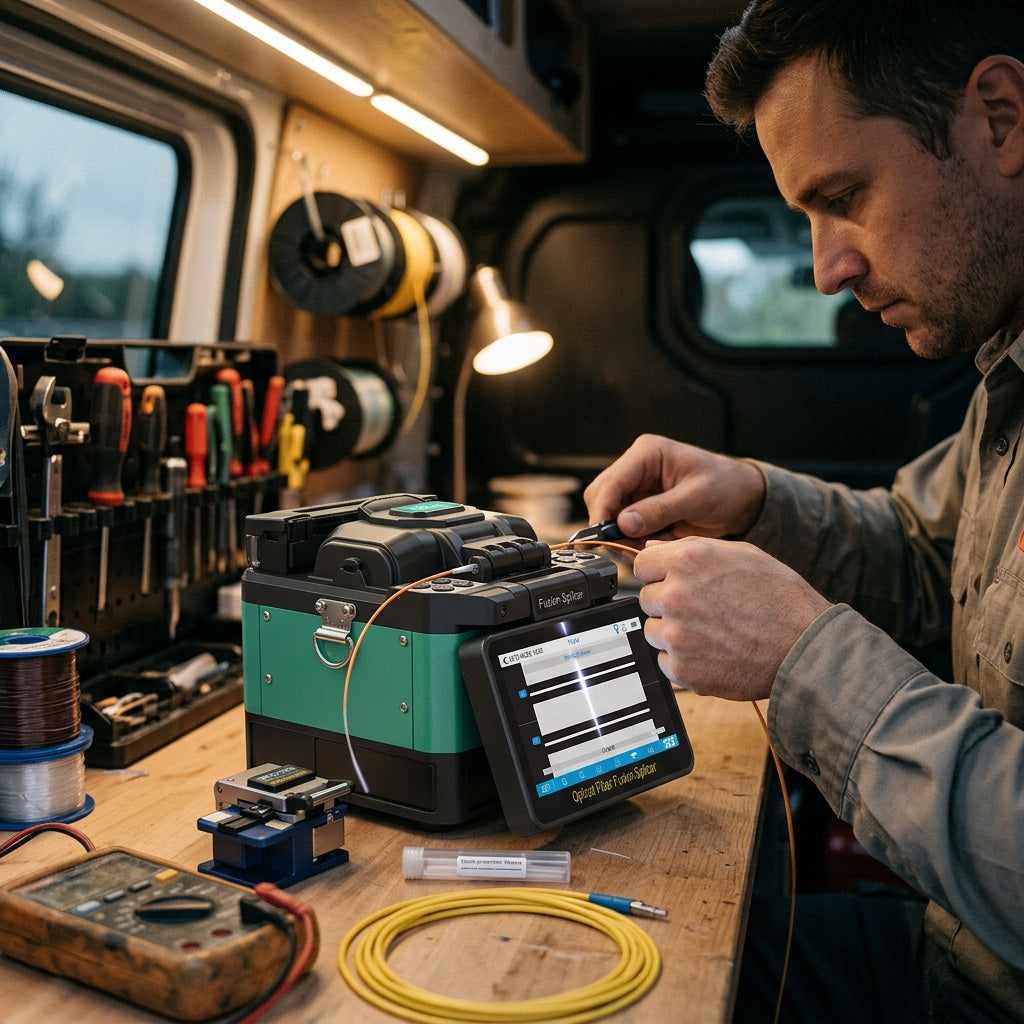

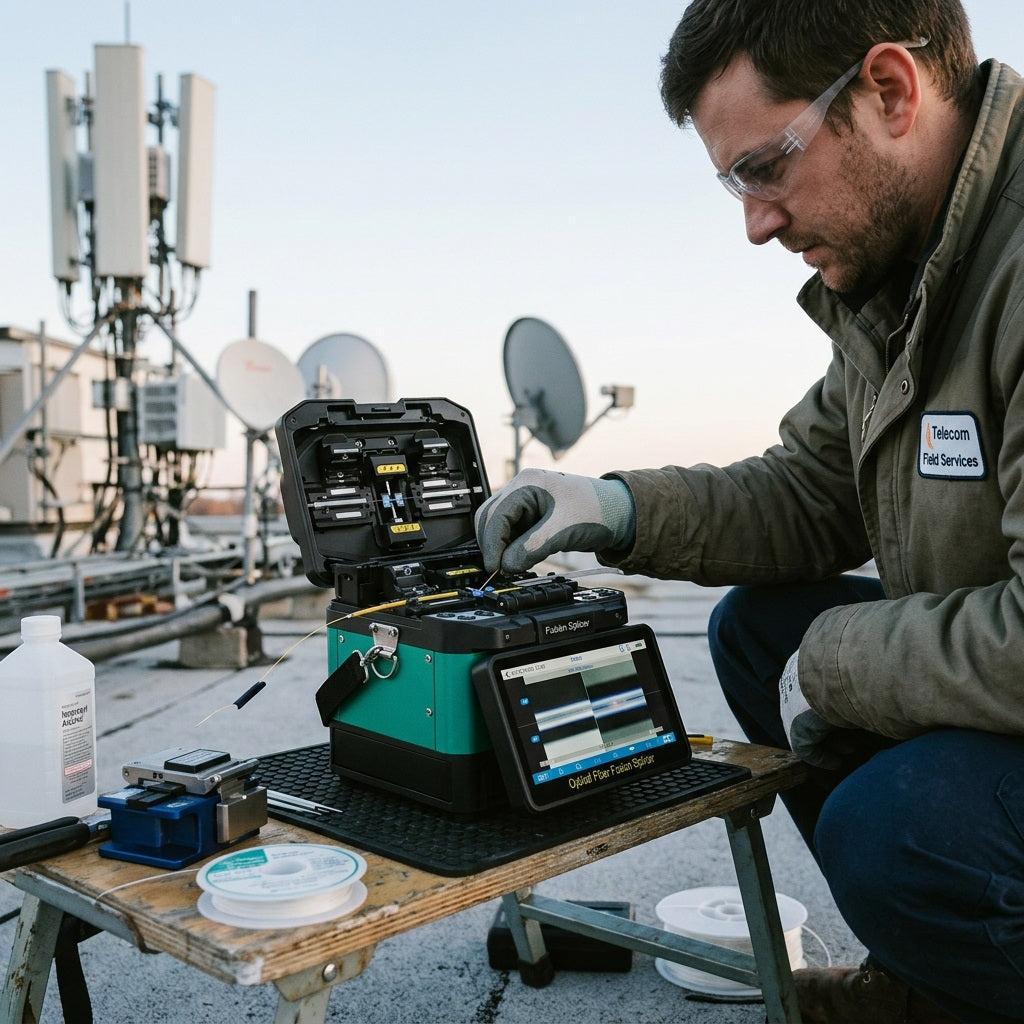

Portable Field-Ready Design

With its compact design, rechargeable 6700mAh battery and included carrying accessories, the S-80 is suitable for technicians working both in workshops and in the field. The external power adapter supports AC100–240V, 50/60Hz input.

Package Contents
1 × S-80 Fibre Optic Fusion Splicer
1 × Tool Kit
1 × Fibre Cleaver
1 × 3-Port Fibre Stripping Forceps
1 × Leather Wire Stripper
1 × Anti-Falling Bag
1 × Hand Strap
1 × Shoulder Strap
1 × Power Cord
1 × Power Adapter
1 × SOC Fixture
1 × Spare Electrode Rod
1 × Fibre Optic Cleaning Clip
1 × Empty Alcohol Bottle
10 × Cleaning Cotton Sheets
1 × Fibre Optic Cooling Rack
Instruction Manual
Warranty Card
Certificate
Checklist
Ideal For
FTTH fibre installations
Fibre-to-the-home projects
Telecommunications
FTTx networks
Data communication networks
CATV installations
Fibre optic repairs and maintenance
Network contractors and technicians
Fibre optic cable splicing
Field fibre installation teams
