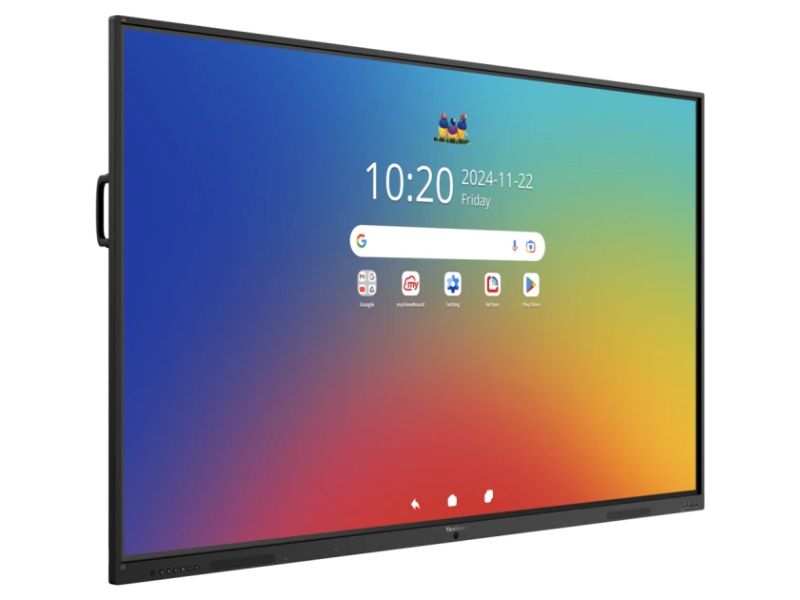

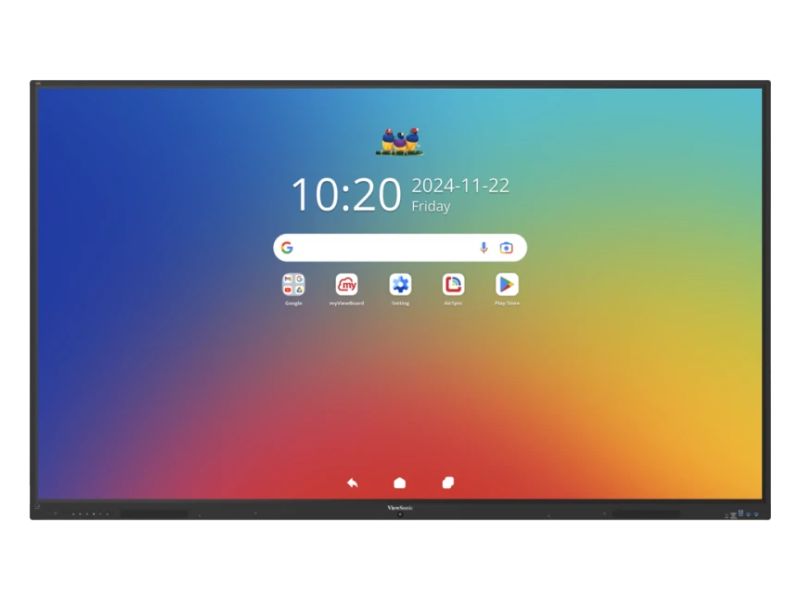

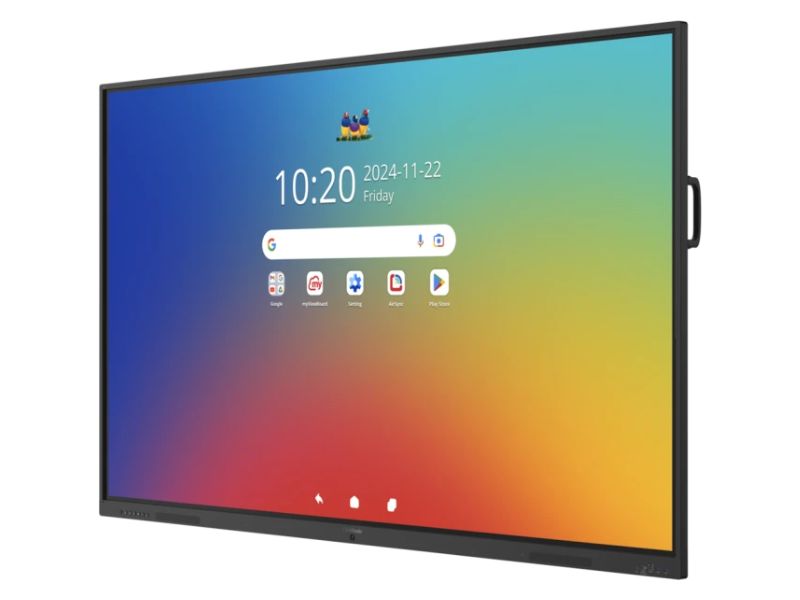

ViewSonic ViewBoard 86" 4K UHD Interactive Flat Panel - IFP8635, Android, 128GB

Experience fast, smooth, and reliable performance in every class with the ViewBoard® IFP35-1 Series. Available in 65", 75", and 86" models, it’s powered by an octa-core CPU with up to 128GB storage. EDLA-certified Android 16 ensures secure access to Google Play apps and a responsive system for effective teaching. Integrated ViewSonic Education Software includes tools for whiteboarding, wireless casting, and device management, helping teachers create interactive and engaging lessons while streamlining IT workflows. Built-in ambient light and motion sensors complete the experience, optimizing brightness, conserving energy, and extending panel life for smarter, more efficient classrooms.​​

Display
Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840 x 2160
Colors: 1.07B colors (8bit+FRC)
Brightness: 450 nits
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 6.5ms
Viewing Angles: H = 178°, V = 178° typ.
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 9H, Anti-glare coating
Orientation: Landscape
Platform
Processor: Octa-Core CPU
RAM: 8GB
Storage: 64GB/ 128GB
Touch
Type/ Tech: Ultra Fine Touch Technology (IR Recognition)
Touch Resolution: 32767 × 32767
Touch Point: Up to 64 points of touch
Palm Rejection: Yes
INPUT
HDMI: x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: x1 TF Card Slot (Micro SD)
OPS: x1 PC Slot
OUTPUT
HDMI: x1 (HDMI 2.1 4K@60Hz)
Audio: x1 (Line out)
SPDIF: x1 (Optical)
LAN
RJ45: x2
USB
Type A: x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
Type B: x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
Type C: x2 (Front x1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP 1.2, Ethernet 100M, PD 15W)
SPEAKERS
20W x 2 Front soundbar
Embedded OS
EDLA-Certified with Android 16
Bundled Software
Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes
Special Features
All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
PIR Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 93.99 W ; `a3`cfff:< 0.5 W
ERGONOMICS

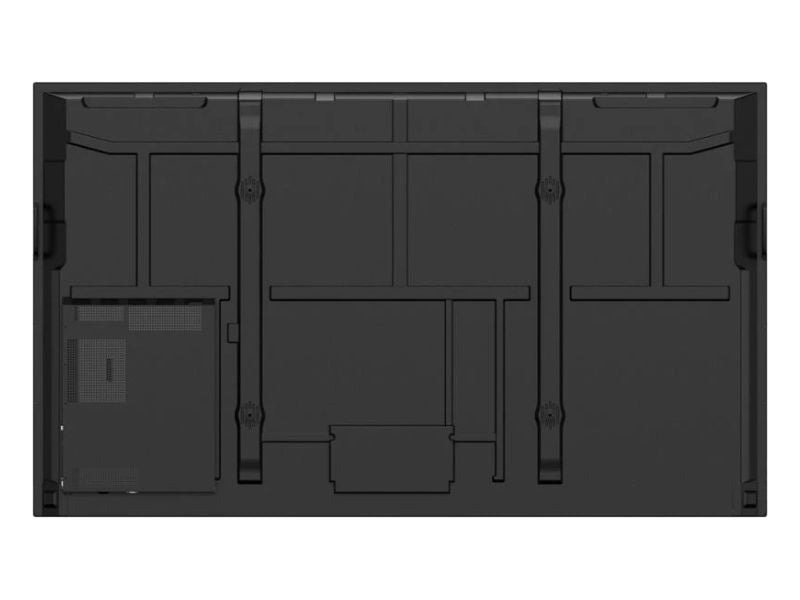

Wall Mount (VESA® ): 800 mm x 600 mm
OPERATING CONDITIONS
Temperature (° C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 77.04 x 45.65 x 3.87 in / 1956.7 x 1159.6 x 98.3 mm
Packaging (inch / mm): 82.68 x 50.63 x 6.93 in / 2100 x 1286 x 176 mm
WEIGHT
Net (lb / kg): 109.57 lb / 49.7 kg
Gross (lb / kg): 137.35 lb / 62.3 kg
REGULATIONS
cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
Energy Star version
8.0
EEI rating
D
PACKAGE CONTENTS
1. Power Cord x1 3 meters,
by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)
2. USB Touch cable x1 3 meters
3. Touch pen (Passive pen) x2
4. Quick Start Guide (With Compliance statement )
5. Screw x4 (for wall mount)
6. HDMI cable x1 3 meters,
(HDMI LA certified)
7. Remote controller x1
8. AAA battery x2
9. Warranty card (only for VSCN)
Compatible Slot-in PC
VPCF5-W33-G1 / VPC37-W53-G1 / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
